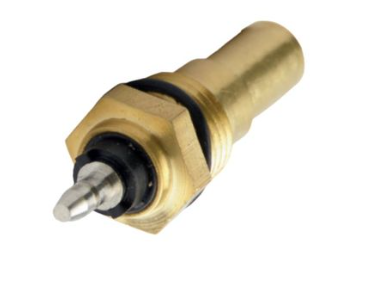

Temperature Switch Nissan E20 L18

The Temperature Switch for the Nissan E20 L18 is an essential component of the engine's cooling system, designed to monitor the engine's temperature and help regulate cooling fan operation or provide temperature data to the vehicle's control systems. This switch helps prevent engine overheating by ensuring that the engine temperature stays within a safe range. Here is a detailed description of its design, function, and importance:

The temperature switch in the Nissan E20 L18 is typically found threaded into the engine block, cylinder head, or coolant passage, and it measures the temperature of the engine's coolant. It plays a crucial role in maintaining optimal engine performance and preventing overheating, particularly in older vehicles like the Nissan E20, which may not use advanced electronic control systems but rely on simple, direct temperature monitoring systems.
The Nissan E20 L18 temperature switch is specifically designed for use with the L18 engine, a 1.8-liter inline-4 engine, and operates in a 12V electrical system. It's responsible for activating or deactivating engine components based on the coolant temperature.

Key Components:
Sensing Element:
At the core of the temperature switch is a temperature-sensitive element, often made from bimetallic materials or thermistors. This element expands or contracts in response to changes in engine coolant temperature.
The expansion or contraction of the sensing element either opens or closes an electrical circuit, sending a signal to the vehicle's cooling fan or dashboard temperature warning light.

Electrical Contacts:
The temperature switch includes electrical terminals or connectors that link it to the vehicle's wiring harness.
These contacts transmit signals when the switch is activated by a specific temperature threshold, allowing the cooling fan or warning light to respond appropriately.

Threaded Housing:
The switch is housed in a metal casing, usually brass or steel, with a threaded section for easy installation into the engine block or cylinder head.
The threads ensure a secure, leak-proof connection with the engine, allowing the switch to be exposed to the coolant for accurate temperature monitoring.

Insulating Material:
The switch contains insulating material to protect its electrical components from engine heat, coolant, and other environmental factors. This ensures that the electrical circuit remains isolated from the coolant and doesn't short-circuit.
Functionality:

Monitoring Coolant Temperature:
The temperature switch is constantly exposed to the engine's coolant, allowing it to monitor the temperature in real time. As the coolant heats up with the engine running, the switch tracks when the coolant reaches a preset threshold.

Activating the Cooling Fan:
In many vehicles, including the Nissan E20 L18, the temperature switch is used to control the electric cooling fan.
When the coolant temperature rises beyond a specified level (often around 80 C to 95 C, depending on the design), the switch closes the circuit, sending an electrical signal to the cooling fan.
This activates the fan, which draws air through the radiator to cool the engine down. Once the coolant temperature drops below the threshold, the switch opens the circuit, turning off the fan.

Overheat Warning:
In some configurations, the temperature switch also provides input to the vehicle's dashboard warning system. If the engine overheats, the switch may trigger a temperature warning light or gauge, alerting the driver to stop the vehicle and allow it to cool down.

Failsafe Mechanism:
If the engine's coolant exceeds a dangerous temperature (beyond 100 C), the switch can trigger additional failsafe systems, such as shutting down non-essential engine functions or activating a secondary cooling system, depending on the vehicle's design.

Operation in the Nissan E20 L18:
The L18 engine in the Nissan E20 relies on this temperature switch to help manage engine cooling. This is especially important in older engines where overheating can cause significant mechanical damage.
The 12V electrical system is typical for vehicles like the Nissan E20, and the temperature switch operates within this voltage to ensure proper fan activation and warning signals.

Regular Inspection:
The temperature switch should be periodically inspected during routine maintenance to ensure it's functioning properly. This includes checking for leaks, corrosion, and electrical connectivity.
The wiring harness and connectors leading to the switch should also be checked for damage or wear.

Testing:
The switch can be tested with a multimeter to check whether it closes and opens the circuit at the correct temperature. Some mechanics also use a heat gun or similar tool to apply controlled heat to the switch and monitor its response.

Replacement:
If the switch fails or becomes unreliable, it can be replaced. Replacing the temperature switch typically involves draining the coolant, removing the old switch, applying new thread sealant or tape to the new switch, and reinstalling it in the engine block or cylinder head.
After replacement, the coolant should be topped off, and the engine should be tested to ensure proper cooling fan operation and temperature monitoring.

Applications:
The Nissan E20 L18 Temperature Switch is used to manage the cooling system in the Nissan E20 van with the L18 1.8-liter engine. It is part of a broader system designed to prevent overheating and ensure the engine operates at an optimal temperature.
This type of switch is common in many older vehicles where cooling fan activation and temperature warnings rely on direct, mechanical, or electrical switching systems rather than modern electronic sensors and engine control units (ECUs).

The Temperature Switch for the Nissan E20 L18 plays an essential role in preventing engine overheating by activating the cooling fan and providing temperature feedback. Proper functioning of this switch is critical for maintaining engine performance, longevity, and safety. Regular maintenance, such as inspecting the switch for corrosion or electrical issues, and timely replacement when necessary will ensure that the Nissan E20's cooling system operates efficiently, protecting the engine from heat damage.

What's in the box
1 x Temperature Switch Nissan E20 L18
