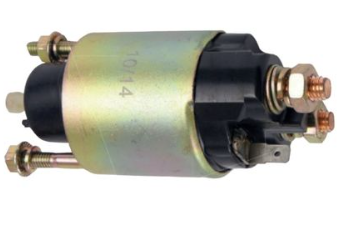

Solenoid Compatible with Toyota Stallion/Venture 12V

A solenoid for a Toyota Stallion Venture 12V is a critical component in the vehicle's starting system, functioning as an electromagnetic relay that controls the flow of electrical current to the starter motor. Here's a detailed description:

Design and Construction:
Shape and Size: The solenoid is typically cylindrical, with a compact design to fit within the limited space of the engine compartment. Its dimensions are optimized to ensure a snug fit and easy integration with the vehicle's existing wiring and components.
Materials: The housing is usually made from high-quality, heat-resistant metal or composite material to withstand the high temperatures generated in the engine bay. The internal components, such as the plunger and contacts, are made from conductive metals like copper or silver alloys to ensure efficient current flow and durability.
Terminals and Connections: It has at least two large electrical terminals, often labelled as the Battery Terminal (B+) and Starter Terminal (S). The B+ terminal is connected to the positive terminal of the battery, while the S terminal connects to the starter motor. Some solenoids may also have smaller terminals for ignition switch connections.

Functionality:
Electromagnetic Activation: The solenoid operates when the ignition key is turned to the start position. This action sends a small current from the battery to a coil inside the solenoid, creating a magnetic field. The magnetic field pulls a metal plunger or rod inside the solenoid, closing the contact points between the B+ and S terminals.
Current Transfer: When the contacts close, a high-current circuit is completed between the battery and the starter motor. This allows the full battery voltage to be transferred directly to the starter motor, initiating the cranking process to start the engine.
Spring Mechanism: Once the ignition key is released from the start position, the magnetic field dissipates, and a spring inside the solenoid pushes the plunger back to its original position. This action opens the contact points, breaking the circuit and stopping the current flow to the starter motor.

Performance Specifications:
Voltage Rating: Designed to operate at 12 volts, which is standard for automotive electrical systems.
Current Capacity: Capable of handling high currents, typically in the range of 100-200 amps, to ensure reliable engagement of the starter motor.
Durability: Engineered to endure thousands of start cycles, the solenoid must resist wear from electrical arcing at the contact points and withstand mechanical stress from repeated activations.

Installation and Compatibility:
Mounting: The solenoid is mounted near the starter motor, usually on the engine block or the starter motor itself. It is secured with bolts and integrated into the vehicle's electrical system via sturdy connectors.
Compatibility: This solenoid is specifically designed for the Toyota Stallion Venture, ensuring compatibility with the vehicle's engine and electrical architecture. The replacement solenoid must match the original specifications to maintain optimal performance.

Applications:
Primary Use: The solenoid's primary function is to engage the starter motor during the engine start-up process.
Secondary Use: It may also serve as a relay for other high-current circuits in some vehicle designs, though its primary role remains as part of the starting system.

This solenoid is vital for the reliable operation of the Toyota Stallion Venture, ensuring that the engine starts smoothly every time the ignition key is turned.

What's in the box
1 x Solenoid Toyota Stallion Venture 12V
