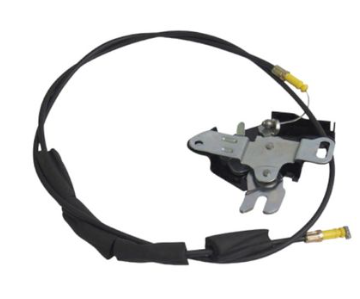

Door Lock Mechanism Toyota Quantum (Sliding Door) (Open/Close)

The Toyota Quantum, known for its versatility and reliability in transporting passengers and cargo, features a sophisticated sliding door lock mechanism. This mechanism ensures secure and convenient operation for both opening and closing the sliding door. Below is a detailed description of the components and functionality of this mechanism:

Components:
Latch Assembly:

The primary locking component that engages with the striker on the door frame.
Ensures the door stays closed securely during transit.
Striker:

A metal piece mounted on the door frame.
Engages with the latch to hold the door closed.
Sliding Rail:

Mounted on the side of the vehicle.
Guides the door along a smooth path when opening and closing.
Rollers:

Attached to the door and slide along the rail.
Ensure smooth and effortless movement of the door.
Lock Actuator:

An electric or manual device that engages or disengages the lock.
Operated by a key fob, interior switch, or manual lever.
Child Safety Lock:

Prevents the door from being opened from the inside.
Provides additional safety for passengers, especially children.
Handle Assembly:

Interior and exterior handles for manual operation.
Connected to the latch mechanism to allow for opening and closing.
Functionality:
Opening the Sliding Door:

Unlocking:
The door lock actuator disengages the latch when the unlock signal is received (via key fob or manual switch).
The child safety lock, if engaged, must be disengaged to allow opening from inside.
Handle Operation:
Pulling the exterior or interior handle disengages the latch from the striker.
Sliding Motion:
The door slides along the rail, guided by the rollers, providing smooth and controlled movement.
Hold Open Mechanism:
Once fully opened, the door is held in place by a detent mechanism to prevent unintended closing.
Closing the Sliding Door:

Sliding Motion:
Push the door along the rail towards the closed position.
Rollers guide the door smoothly along the sliding rail.
Engaging the Latch:
As the door reaches the fully closed position, the latch aligns with the striker.
The latch engages with the striker, securing the door.
Locking:
The door lock actuator can then engage to lock the door.
This can be done manually or electronically using the key fob or interior switch.
Safety and Security Features:
Anti-Theft Mechanism:

The lock mechanism is designed to be resistant to tampering.
Ensures the door remains securely locked when the vehicle is unattended.
Emergency Release:

An interior emergency release mechanism allows the door to be opened in case of an emergency.
Ensures passenger safety by providing a quick exit route.
Auto-Close Assist:

Some models may feature an automatic close assist mechanism.
Helps to pull the door fully closed and engage the latch with minimal effort from the user.
Summary
The door lock mechanism in the Toyota Quantum's sliding door is a critical component ensuring the security, safety, and convenience of the vehicle. It combines manual and electronic elements to provide a reliable and user-friendly experience, suitable for both passenger and cargo configurations. The design emphasizes smooth operation, security against unauthorized entry, and safety for all passengers.

What's in the box
1 x Door Lock Mechanism Toyota Quantum (Sliding Door) (Open/Close)
