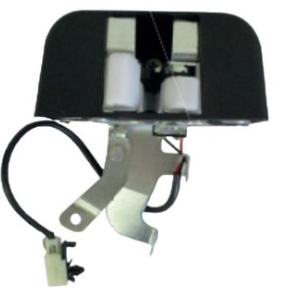

Boot Door Lock Mechanism Suitable for Nissan NV350 Rear

The boot door lock mechanism for the Nissan NV350 rear door is an essential component that ensures the rear door (often referred to as the tailgate or cargo door) remains securely closed and can be easily opened when needed. This system is part of the vehicle's central locking and security system, offering both manual and electronic operation, depending on the vehicle's configuration.

Key Components:
Latch:
The latch is the primary locking component that hooks onto the striker mounted on the door frame. It is typically made of high-strength metal to endure frequent usage and secure the door in place.
The latch is spring-loaded to return to its default locked position after every door operation.

Striker Plate:
Mounted on the door frame, the striker plate is the part with which the latch engages. It's usually bolted to the frame and designed to align perfectly with the latch for smooth locking action.
The striker is made of durable steel to resist wear and tear from repeated impacts with the latch.

Lock Actuator:
Many models of the Nissan NV350 come with a powered actuator, which can be controlled via a remote key fob, interior switch, or the central locking system.
This actuator drives the locking and unlocking process without needing manual intervention. It includes an electric motor that moves linkages to engage or disengage the latch mechanism.

Linkages:
The system contains metal rods or cables that connect the actuator and latch mechanism. These allow the transfer of force from the actuator or the door handle (either internal or external) to the latch.
Properly adjusted linkages ensure smooth and reliable operation.

External Handle:
The external door handle is used for manual operation, typically connected to the latch via a linkage system. Pulling the handle releases the latch, allowing the door to open.
On electronically locked models, the handle is disabled until the lock actuator disengages the latch.

Internal Handle/Release Mechanism:
Inside the vehicle, there may also be a secondary handle or release switch, enabling the driver or passengers to open the rear door from within. This handle may work mechanically or electrically.

Key Cylinder (Optional):
Some versions of the Nissan NV350 may have a physical key cylinder as a backup to the electronic locking mechanism, allowing manual unlocking of the rear door in case of a power failure.

Sensors:
On models with central locking and alarm systems, the lock mechanism may include sensors that detect whether the door is securely latched. These sensors communicate with the vehicle's computer system, triggering warnings if the door is not closed properly or controlling the automatic locking system.

Functionality:
When the rear door is closed, the latch mechanism engages with the striker plate, securely holding the door shut. Depending on whether the vehicle is equipped with an electronic lock, the actuator either remains passive (manual operation) or actively controls the locking/unlocking process.

Locking: When the vehicle's central locking system is activated (either manually via a key or electronically via a remote), the actuator engages, moving the internal linkages to lock the latch, preventing the door from being opened.

Unlocking: When unlocked, the actuator retracts, allowing the latch to be disengaged either by pulling the external handle or by operating the internal handle/release mechanism.

Common Issues:
Latch Misalignment: Over time, the latch and striker plate may become misaligned due to wear and tear, leading to difficulty in closing the door properly.
Actuator Failure: The electronic actuator may fail, leading to issues with locking and unlocking the door electronically. This could be due to electrical issues, motor failure, or broken linkages.
Worn Linkages: Metal rods or cables connecting the latch to the handle or actuator can wear out or become detached, resulting in the inability to open or close the door.
Sensor Malfunction: If equipped, door position sensors can fail, causing false alarms or preventing the vehicle from recognizing whether the rear door is securely closed.

Maintenance and Repair:
To ensure the boot door lock mechanism remains in good working condition, regular maintenance is recommended:
Lubrication: The latch, striker, and moving parts should be lubricated periodically to prevent rust and ensure smooth operation.
Inspection: Check the alignment of the latch and striker regularly, especially if the door starts making noise or becomes difficult to close.
Electronic Diagnostics: If the lock actuator stops working, a diagnostic check of the vehicle's electrical system may be necessary to identify any faults in wiring or the actuator itself.

What's in the box
1 x Boot Door Lock Mechanism Nissan NV350 Rear
